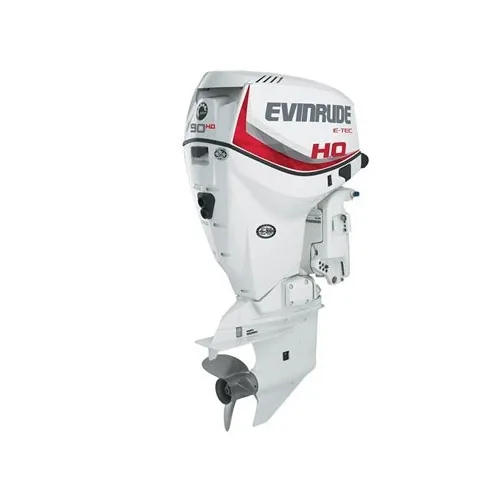

2015 EVINRUDE E90HSX E-TEC OUTBOARD MOTOR

2015 Evinrude E90HSX E-TEC Outboard Motor

The H.O. Series. Blurring the line between boating and aviation. Like pushing limits? Then take a closer look at our High Output Series. Because they push limits about as far as they can go – and come with everything it takes to handle it.

Specifications

Model: E90HSX

Weight: 405 lb. (184 kg)

Shaft Length: 25 in. (635 mm)

Color: White

Gear Ratio: 2.25:1

Starting Method: Electric

Trim Method: FasTrak™ Power Trim and Tilt

Steering: Remote

Limited Warranty: 3-Year, Non-declining

Engine type: V4 60° E-TEC DI

Displacement: 105.4 cu.in. (1726 cc)

Recommended fuel: 87 Octane

Emissions compliance: EPA 2013, CARB 3 STAR, European Union

Recommended Oil: Evinrude/Johnson XD-100 Oil

Propshaft HP: 90 HP (67 kw) @ 5000 RPM

Full Throttle RPM Range: 5500-6000 RPM

Alternator output: 133 amps total/50 net dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Multi-point targeted oiling

Bore x Stroke: 3.601 x 2.588 in. (91 x 66 mm)

Year
2015

Manufacturer
Evinrude

Model
E90HSX – 90-HO White, 25″ Shaft

Style
Outboard

Dimensions

Shaft Length
25 in. (635 mm)

Weight
405 lb. (184 kg)

Engine

Engine Type
V4 60 deg. E-TEC DI

Bore x Stroke
3.601 x 2.588 in. (91 x 66 mm)

Displacement
105.4 cu.in. (1726 cc)

Starting
Electric

General

Trim Method
FasTrak™ Power Trim and Tilt

Shaft Rotation

Propshaft Horsepower
90 HP (67 kw) @ 5000 RPM

Full Throttle Operating Range
5500-6000 rpm

Gear Ratio / Shift
2.25:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
133 amps total/50 net dedicated

Cooling

Steering
Remote

Warranty
Limited: 3-Year, Non-declining
