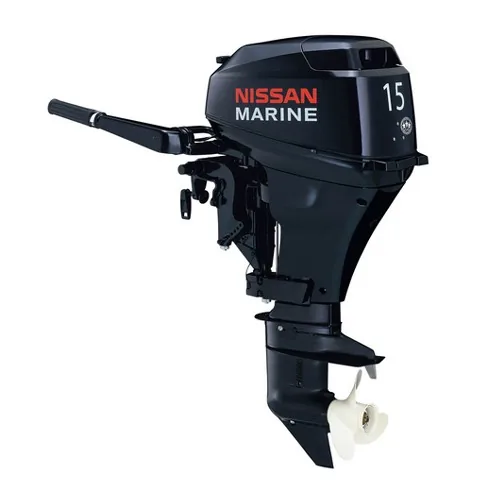

2014 NISSAN 15 HP NSF15C2 OUTBOARD MOTOR

Recently named as top choice in Boating Magazine’s Buyer Guide for 15hp class! With a large 351cc powerhead, tuned intake system, and digital CDI ignition system, the 15hp Nissan provides reliable on demand power every time!

The 15hp is an excellent source of power for medium to larger sized jon boats, skiffs, and inflatables as well as heavier sailboat and kicker/trolling applications. And as with all Nissan outboards, the 15hp Nissan is backed by Nissan Marine’s impressive 5-year warranty.

- Decompression Device for Easy Starting
- Advanced Digital CD Ignition System
- Low Oil Pressure Warning System
- ESG Over Rev RPM Limiter
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Easy to Replace Canister Style Oil Filter
- Sacrificial Zinc Anodes + Trim Tab
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Adjustable Steering Friction Setting
- Tuned Intake for Crisp Acceleration
- Carburetor Accelerator Pump
- Start-In-Gear Protection
- Thermostatically Controlled Cooling
- Advanced Cross Flow Induction System
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-the-Propeller Exhaust
- 3.1 Gallon Fuel Tank / Fuel Line
- Safety Lanyard Cut-Off Switch
- Operating Manual & Emergency Tool Kit
- Nissan Marine 5-Year Warranty

MODEL NSF15C2

MODEL YEAR 2014

SKU NSF15C2-14

WEIGHT 117.0000

MANUFACTURER Nissan

HORSEPOWER 15hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 351 cc (21.41 cubic inches)

BORE AND STROKE 61 x 60 mm (2.40 x 2.36 inches)

FULL THROTTLE RPM RANGE 5,000-6,000 RPM

IGNITION SYSTEM Digital CD Ignition

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE 3.1 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)

OIL CAPACITY 1 Quart (1000 ml)

LUBRICATION Wet Sump

ALTERNATOR Optional 12V 145W 12A (installation required)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (front mount shifter)

PROPELLER 9.2″ Dia. X 9.1″ Pitch 3-Blade Aluminum

INTERNAL BATTERY No
