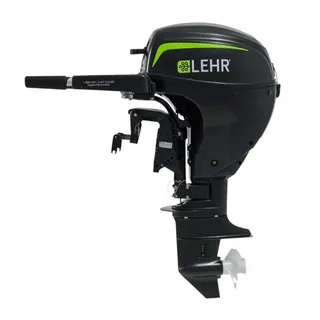

2014 LEHR 9.9 HP LP9.9EL-IB OUTBOARD MOTOR

Applying LEHR’s technology to a marine solution is both timely and critical for our planet and its water supply. The EPA and CARB set strict new standards for gasoline marine engines and especially fuel systems in order to reduce the amount of gas fumes, carbon monoxide, hydrocarbons and smog-forming pollutants. Propane has long been recognized as a “green” energy source that reduces emissions, protects the environment and reduces dependence on foreign oil. Through the use of propane fuel, LEHR has found a cost effective way to reduce emissions and associated health risks which will improve the marine environment all over the world.

- Propane Power 4 Stroke Engine Design
- Clean, efficient, eco friendly propane power.
- Twist ‘n Go Fueling (LP2.5 & LP5.0)
- Remote Fuel Tank Capability
- Electric Start Models (LP9.9 & LP15)
- Shallow Water Drive
- Tiller Handle with Twist Grip Throttle
- Precise throttle control and steering
- Throttle Friction Adjustment
- Steering Friction Adjustment
- Auto Reverse Lock
- Easy Starting
- Lightweight Compact Design
- Stainless Steel Drive, Shift & Prop Shafts
- Emergency Stop Lanyard

MODEL LP9.9EL-IB

MODEL YEAR 2014

SKU LP9.9EL-IB-14

WEIGHT 88.0000

MANUFACTURER LEHR

HORSEPOWER 9.9hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Electric

TRIM & TILT Manual

FUEL DELIVERY Propane

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 212 cc (12.94 cubic inches)

BORE AND STROKE 2.29″ X 1.69″ / 56 mm X 43 mm

FULL THROTTLE RPM RANGE 4500 – 5500 RPM

IGNITION SYSTEM CDI Ignition

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE Propane (110 Octane)

FUEL TANK / FUEL LINE 11 & 17 lbs Composite Tanks, Remote (optional): 31 lbs Liquid Draw Composite Tank

OIL TYPE 4 Stroke 10W-30

OIL CAPACITY 0.85 US QT (0.8 L)

LUBRICATION Wet Sump / Pressure Lubricated

ALTERNATOR 6 amp / 80 watt – Electric, 6 amp / 80 watt – Manual (Requires Optional Regulator)

COOLING SYSTEM Water / Thermostatic Control

SALTWATER RATED YES

GEAR RATIO 2.08:1

GEAR SHIFT Forward, Neutral, Reverse

PROPELLER 8.5″ Dia. x 8.5″ Pitch 3-Blade Aluminum

INTERNAL BATTERY YES
