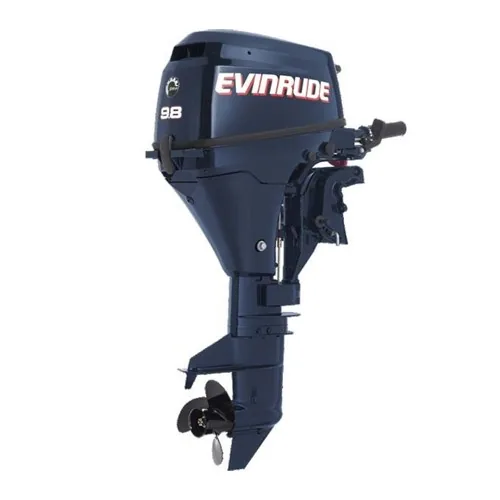

2014 EVINRUDE E10TEL4 OUTBOARD MOTOR

The new Evinrude portable four-strokes have a lot to offer anyone looking for the best small engines available. Compact These engines have many features to offer in one small package. From an integral fuel tank to a flow thru prop for quiet running, these portables have everything you need to make your adventure on the water more enjoyable. Easy With CD ignition and a fast-idle choke system for easier and faster starting, as well as adjustable steering friction for reduced steering effort and fatigue, Evinrude portable engines make boating that much easier. Simple Operating a portable outboard shouldn’t be complicated. With front mount shift levers, shallow water drive and power tilt, these engines are made to make your next trip on the water the best ever!

Compact, Easy and Simple

- Light and compact
- Front mounted shift lever, an industry first in its class
- Ultra Low emission, EPA and CARB approved
- Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
- Fast-idle choke system eliminating the need for manual choke operation
- Shallow water drive
- 6 trim positions
- Adjustable steering friction for reducing steering effort
- Newly designed holding grip and larger carrying handle
- Through-the-prop exhaust for a quieter ride
- Thermostatically controlled cooling system for consistent engine temperature
- Stainless steel water pump housing liner for outstanding durability
- High grade marine aluminum alloy that provides the ultimate protection against corrosion
- Zinc coating on internal water passages for superior corrosion resistance
- Plastic fuel tank with fuel gauge on the cap (external tank models only)
- Low oil pressure indicator
- Safety lanyard (an essential protection feature standard on all Evinrude portable)
- Start-in-gear protection for safer engine starting
- Over-rev. limiter

General Information

Manufacturer

Evinrude

Model Year

2014

Model

E10TEL4

Model Code

E10TEL4

Measurements

Power

9.8 Horsepower

Displacement

209 Cubic Centimeter

Bore x Stroke

2.17 x 1.73 in. (55 x 44 mm)

Shaft Length

20″

Dry Weight

81 lbs

Engine

Engine Type

2-cylinders

Starting

Electric

Operational

Fuel Type

Unleaded

Full Throttle RPM Range

5,000 – 6,000 rpm

Fuel Induction

Carburated; recommended fuel 87 octane unleaded gasoline

Lubrication

Sump; NMMA Certified FC-W® 4-stroke oil SAE 10W-30/40 (SF, SG, SH, SJ)

Gear Ratio

2.08:1

Trim System

Manual trim

Electrical

Alternator Output

Optional: 12V, 80W, 6A (standard on Electric Start models)

Other

Colors

Blue
